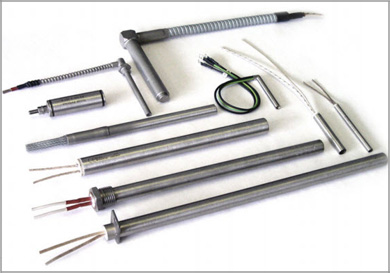

• High Density Cartridges
    Heater
    - Quality Cartridges Heater from
    Italy Surface load 1000 C maximum
    - Diameter 6.5, 8.0, 10.0, 12.5,
    16.0, 20.0 mm 1/4,3/8,1/2,5/8 inch
    - Length25 mm up to 1000 mm
    - Any Voltage
    - Within/without Thermocouple
    - More than 1000 item standard size
  • Coil Nozzle Heater - Size 1.0 x 1.6 mm up to
    - High watt with all connection
    - Specic load
    - 12 - 45 w/cm2
    - Surface load 650 C maximum
    - Any voltage, Any coil
    - Within/without Thermocouple
    J or K Type
    - Coil type with Tangential,
    Axial and radial exit
  • Mica Nozzle Heater - Standard power density for
    Brass is 4.5 w/cm2 and for
    stainless is 7.0 w/cm
    - Standard Brass tubular sheath
    (Alsoavailable in stainless steel)
    - Any Voltage
    - Perfect roundness
    - Extremely small connecting cap
  • Thermocouple and
    Resistance Sensors
    - Standards model is AISI 304,
    310, 316, 316 and Incoloy Material
    - Standards Type J (Fe-Cu-Ni),
    Type K (Ni-Cr-Ni)
    - RTD 100 or 2 x RTD 100 with
    2,3,4 wires.
    - Standard size or Made to order
  • Fittings Accessories - Taper and parallel Push-in Fittings
    - Quick Fit M5,M6,1/8,1/4,3/8,1/2
    - Threaded Adaptors M5, G1/8,
    G1/4,G3/8,G1/2,G3/4,G1
    - Tube Fitting and Speed Controlle
    - PU/PE/Nylon/Air Hose
    - Accessories
  • Insulation Jacket
    (Saving Energy Product)
    - Energy saving insulation for air conditioned operation room for injection machine. and blow molding machine
    - Tailor made size according to existing dimensions
    - Maximum resistance temperature 900 C
  • Hand Pallet Truck - Capacity: 2000/2500/3000Kg
    - Lowest forks height 85/75/65mm
    - Lifting height 195/185/175mm
    - Forks length 1000/1100/1150/1220mm
    - Forks width 520/550/685mm
  • Semi Electric Stacker - Capacity 1000-2000Kg
    - Lifting height 1600-3300mm
    - Frame type Single Double
    - Lowest forks 90mm
    - Forks length 1000mm
  • Solenoid Valve - 100 Series Solenoid/Air Control Valve
    - PU Series Solenoid Valve
    - HV Series Hand Lever Valve
    - 4F Series Foot Valve

ULTRAMAX High Power-Density Cartridge Heaters

ULTRAMAX are a new generation of high wattage electric heating elements, having high power in a limited area and ensuring, all the same, excellent reliability under heavy-duty working conditions. The special technology used in their construction make them the most advanced type of heating element.
The nickel chrome wire wrapped around a magnesium oxide core is situated in a peripheral position, with a very thin compressed insulating layer between wire and sheath. This allows efhcacious heat exchange, thus maintaining the temperature of the resistance wire at a much lower level compared to other heating elements where the wire is situated in the center. Furthermore, not only do they owe total reliability to the use of advanced technology and precise inspection techniques during manufacture, but also to the use of Hrst-class material from the best sources on the market.

Over 60,000 models on stock

Over 60,000 standard, semi
finished elements are kept on
stock, ready to be finished
according to customer
specification, for example
sealing, cable outlet, cable and
insulation type, cable length
fittings and various other options.

Therefore the ULTRAMAX
heating cartridges can usually
be customized and shipped
within 3 working days from
order receival. This large
quantity of semi-finished
heaters kept on Stock
guarantees swift shipment of
ordered quantities even in case
of particular specifications.

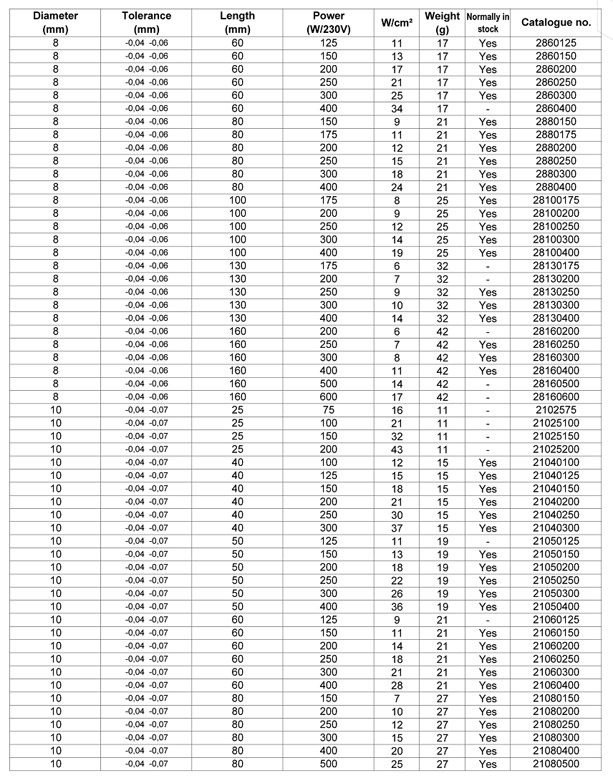

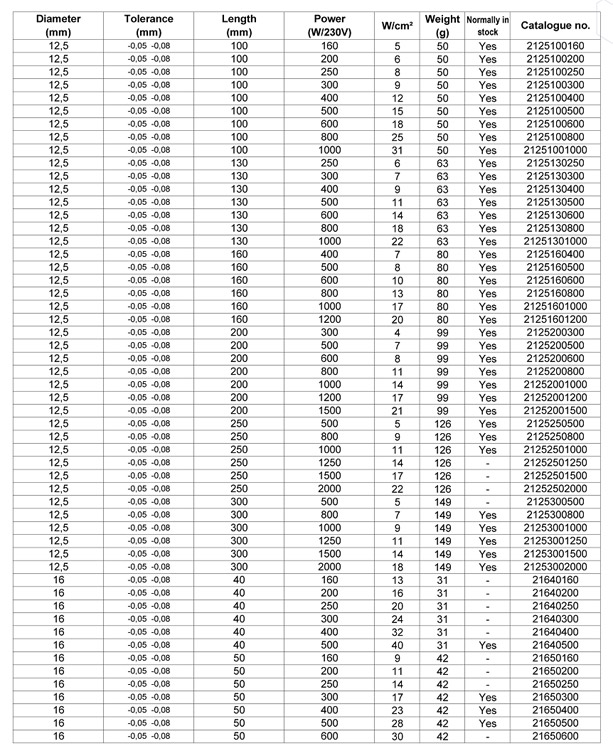

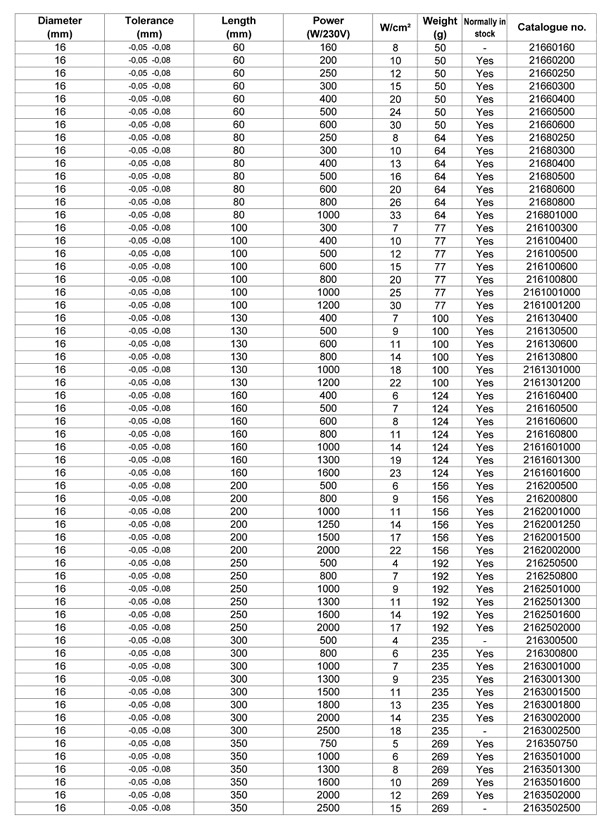

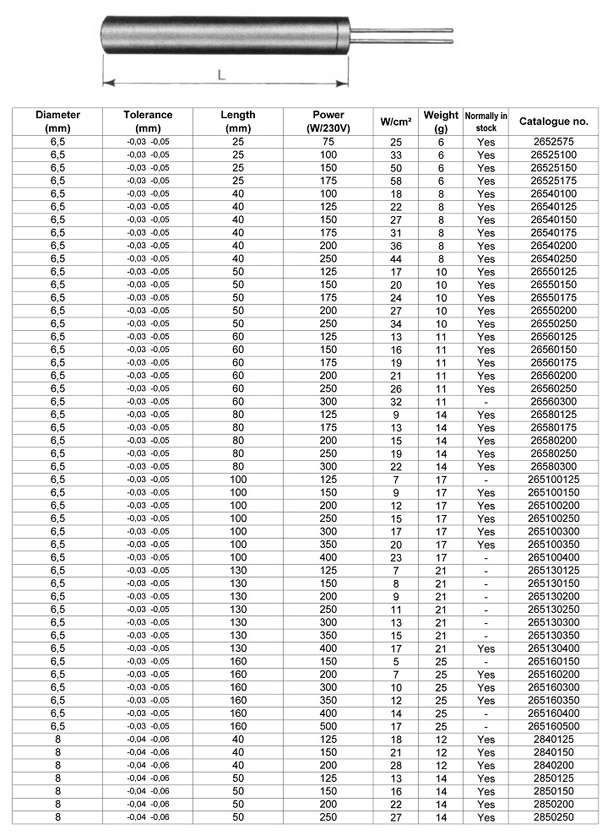

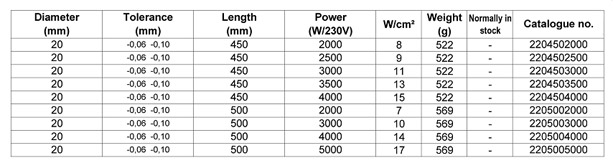

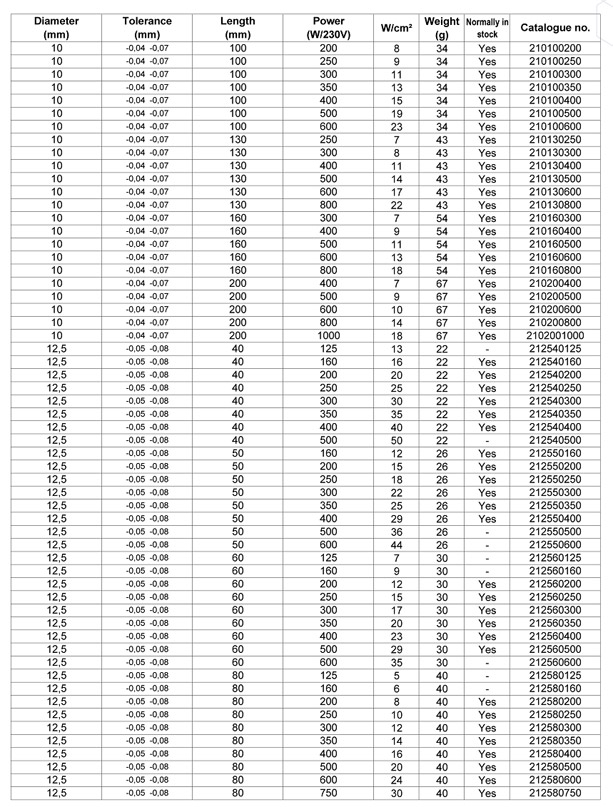

Standard U LTRAIVIAX, Metric Sizes

Unheatad length is 5 mm from bottom end and 10 mm from cable end. See tolerances further down.

1 2 3
