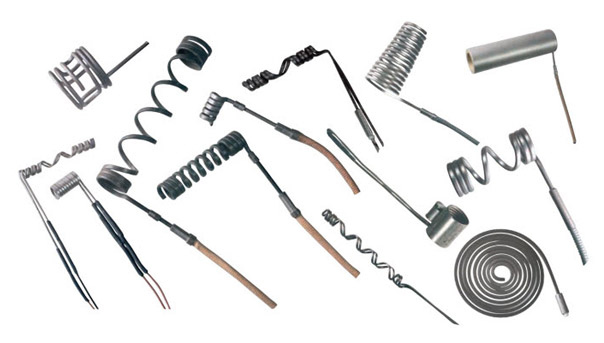

ROLLMAX microtubolar healers are revolutionary heaters, able to work also in most difficulf conditions. |
|
The external sheath is made in CrNi steel in which inside a resistive wire, uniformly distributed, is insulated in a high compressed MgO compound . Aiter annealing in controlled atmosphere, they become very salt to coil thus allowing also very complicated shapes with very small bending radii. Thanks to their versatility and reliability they are suitable lar a lot ot ciilterent applications . Developed lor solving the problem at the ditlerentiated heating ol the plastic material injection nozzles, they are now employed in the mast different and complex fields. Aeronautical, space, railways, chemical, metallurgical, food, glass, paper cutomotive, naval, packaging, medical industries etc. could find solution of their heating problems thanks to ROLLMAX microtubolar heaters. |
|
|
|
|
THE MAIN ADVANTAGES OF ROLLMAX |
|
| - Wide contact surface to allow perfect heat transmission between heater and surface to be heated - Optimal electrical insulation and extremely long life - Sturdy construction resisting to mechanical shocks - High working temperatures (up to 750°C) - Built Thermacauple for high precision thermal control (J - standard , K - upon request) - Minimal thermal inertia - Possibility to be coiled / bended also in very complex shapes - Possibility to be incorporated in brass cast elements - Eight cifferent cross sections to best fit with every application - Large range at standard sizes available frorn Stock |
|
|
|

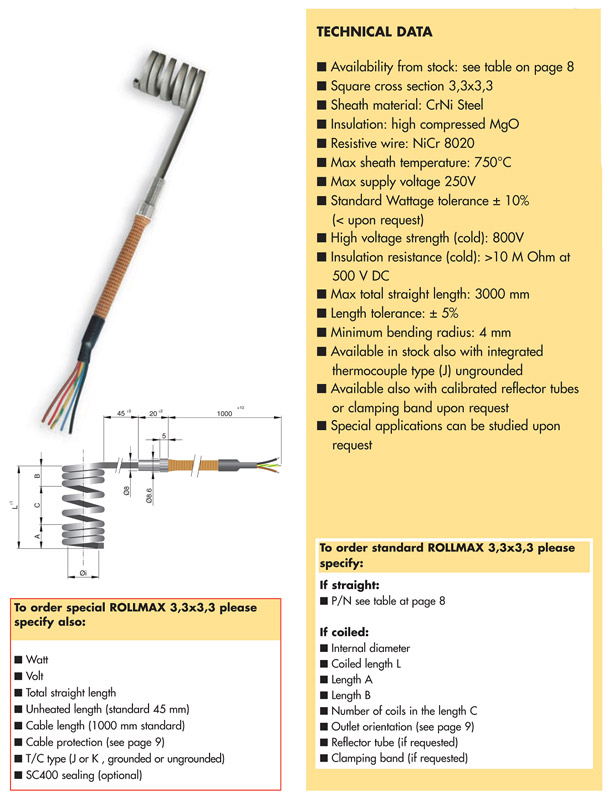

ROLLMAX 3,3 x 3,3 |
|
|
|

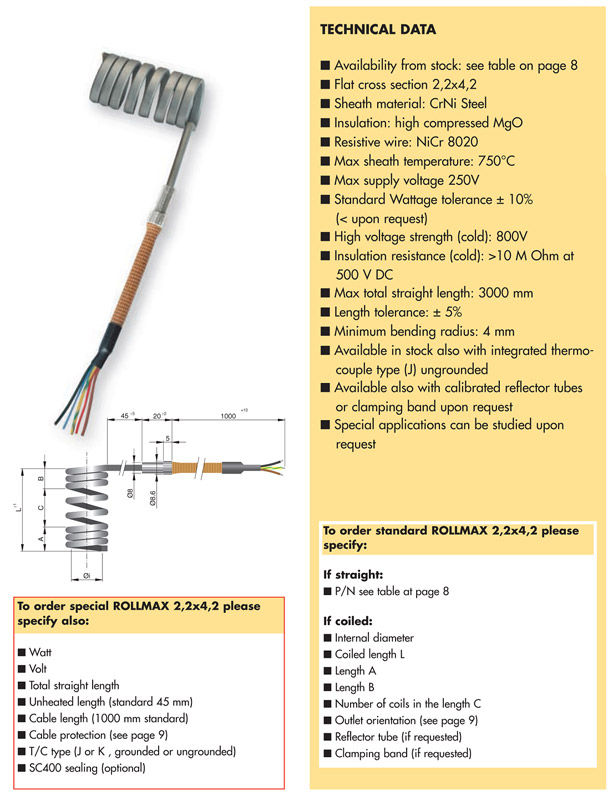

ROLLMAX 2,2 x 4,2 |
|
|
|

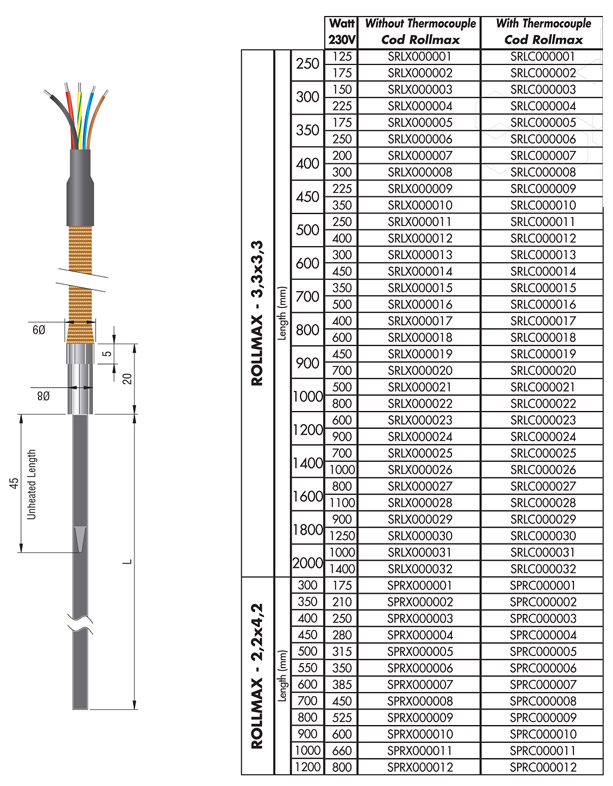

Table of stundurd types available from stock |
|
|
|

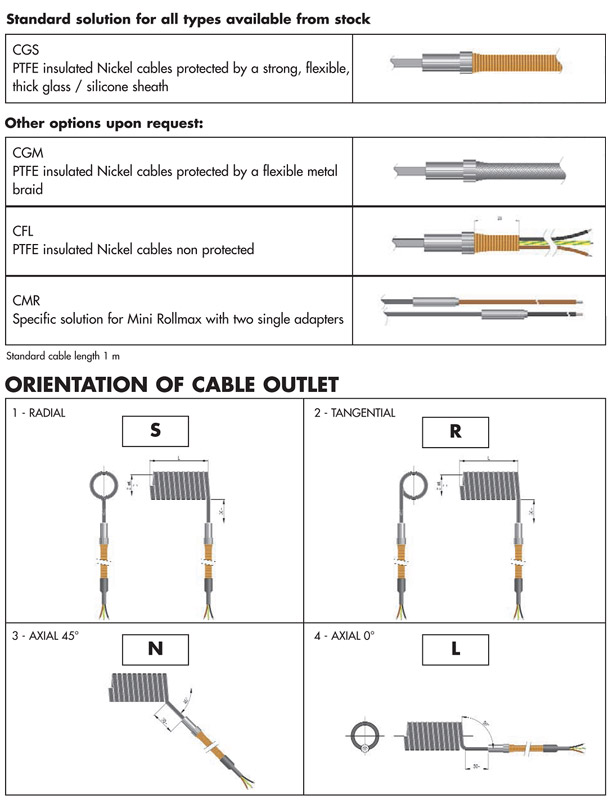

CABLE PROTECTION OPTIONS |
|
|
|
ROLLMAX Ø 3,3 e Ø 3,7 |
|
|
|

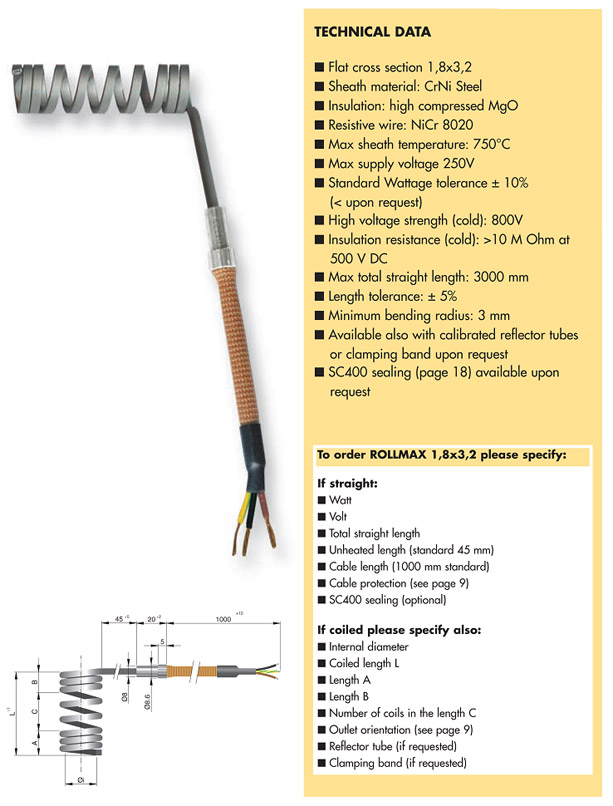

ROLLMAX 1,8 x 3,2 |
|
|
|
MINI ROI.I.MAX Ø 1 ,8 |
|
|
|

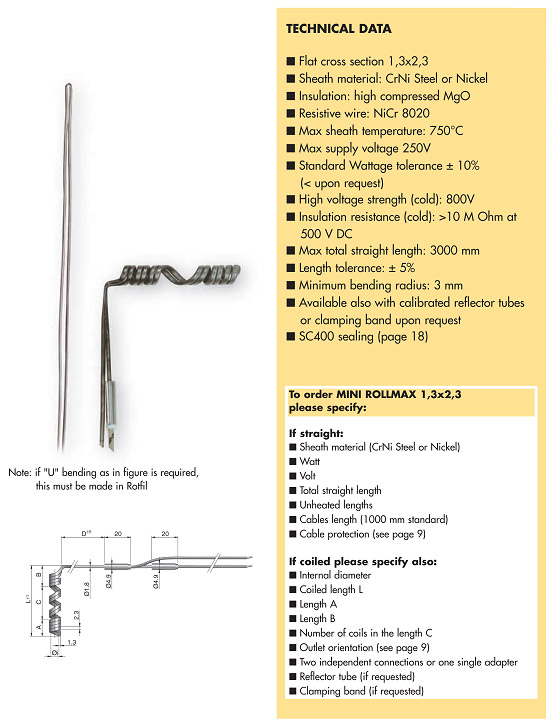

MINI ROLLMAX 1 ,3 x 2,3 |
|
|
|

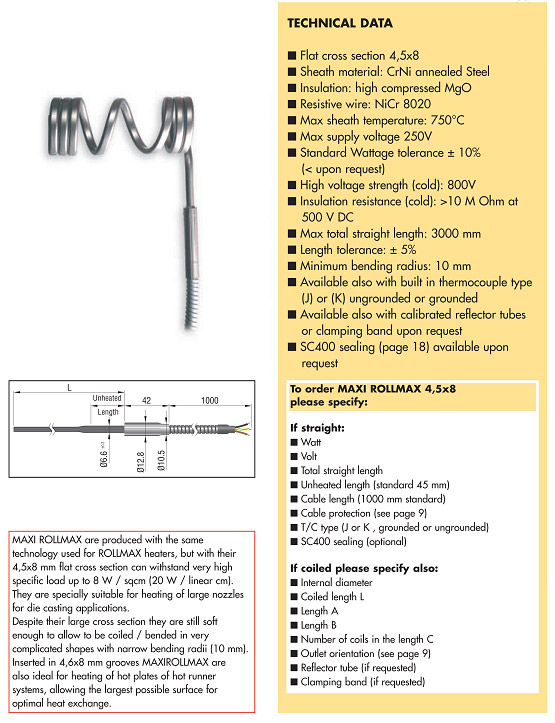

MAXI ROLLMAX 4,5 x 8 |
|
|
|
MINI ROLLMAX with MINIMAX clampimg band |
|
|
|
High precision Heating Bushes FORMAX |
|
|
|

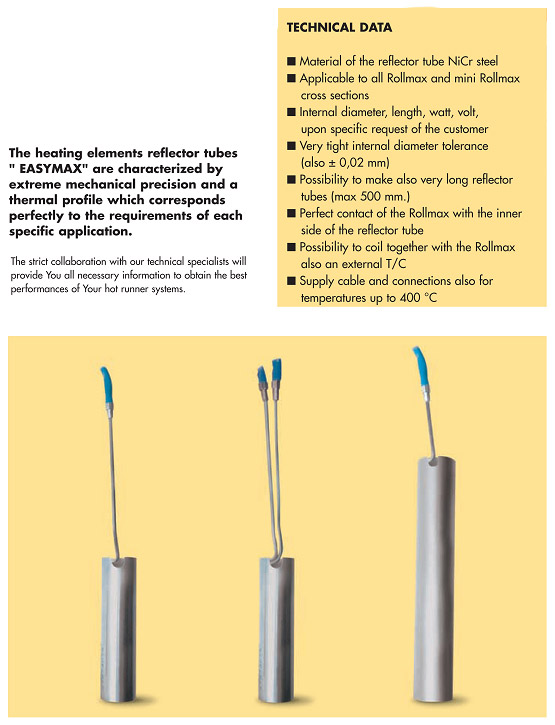

Heating elements with reflector tubes "EASY MAX" ter hot runner systems |
|
|
|

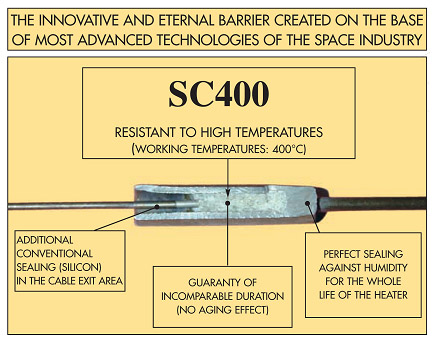

SC400 SEALING |
|
|
|
Since over 20 years an inimitable teature ot Rottil heaters. SC400 crystal compound is a unique sealing which guarantees the maximum insulation and the longest lite ot the heaters also in extreme working conditions. SC400 represents a durable and elticient barrier preventing any contamination to get inside the heater. Moisture, water , acid , oils , gas etc cannot get through the SC400 barrier whose main characteristic is the pertect adhesion to the metallic and ceramic walls inside the heater and can withstand to working temperatures up to 400°C. Standard on all Mini Rollmax 1,3x2,3 , available upon request on all other cross sections. |
|

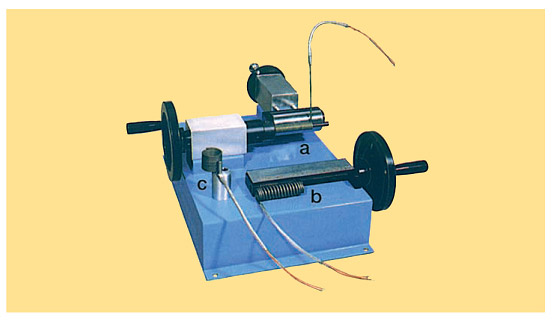

Ceiling machine for ROLLMAX |
|
|
|
This tool is available trom stock. It also toresees a screw device that with the help ot a graduated scale allows a precise spacing ot the coils and the desired orientation ot the cable outlet. The machine is supplied together with an instruction manual with allows immediate and easy operation. These instructions are also available on our internet web page under "Rollmax" section. In case ot order please specity the diameter ot cylinder on which the ROLLMAX must be assembled. Every diameter requires a specilic mandrel. |
|
