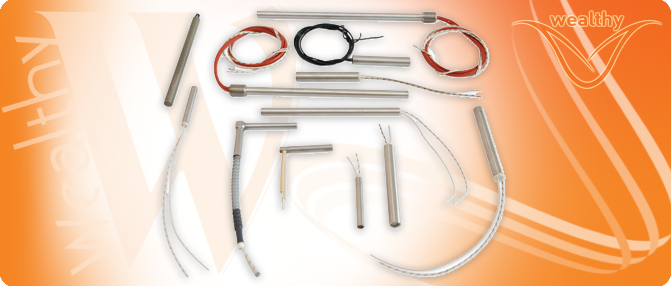

High Density Cartridges Heater- Quality Cartridges Heater from
Italy Surface load 1000 C maximum
- Diameter 6.5, 8.0, 10.0, 12.5,
16.0, 20.0 mm 1/4,3/8,1/2,5/8 inch
- Length25 mm up to 1000 mm
- Any Voltage
- Within/without Thermocouple
- More than 1000 item standard size
Coil Nozzle Heater
- Size 1.0 x 1.6 mm up to
- High watt with all connection
- Specic load
- 12 - 45 w/cm2
- Surface load 650 C maximum
- Any voltage, Any coil
- Within/without Thermocouple
J or K Type
- Coil type with Tangential,
Axial and radial exit

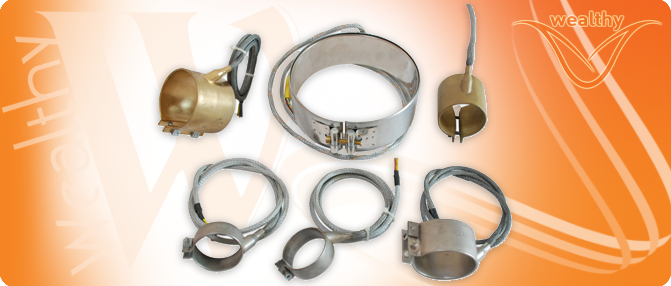

Mica Nozzle Heater
- Standard power density for
Brass is 4.5 w/cm2 and for
stainless is 7.0 w/cm
- Standard Brass tubular sheath
(Alsoavailable in stainless steel)
- Any Voltage
- Perfect roundness
- Extremely small connecting cap

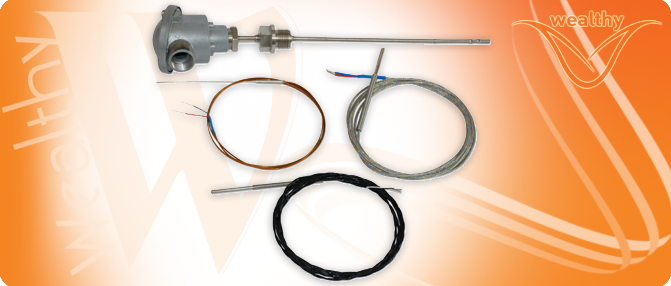

Thermocouple and Resistance Sensors
- Standards model is AISI 304,
310, 316, 316 and Incoloy Material
- Standards Type J (Fe-Cu-Ni),
Type K (Ni-Cr-Ni)
- RTD 100 or 2 x RTD 100 with
2,3,4 wires.
- Standard size or Made to order

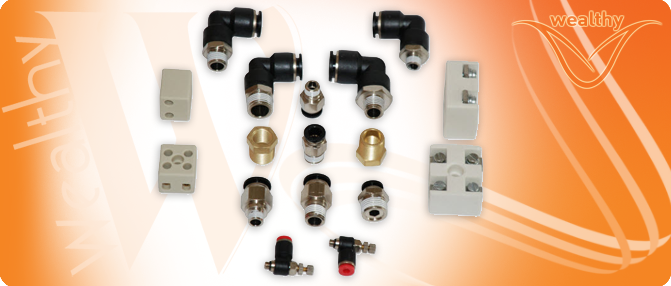

Fittings Accessories
- Taper and parallel Push-in Fittings
- Quick Fit M5,M6,1/8,1/4,3/8,1/2
- Threaded Adaptors M5, G1/8,
G1/4,G3/8,G1/2,G3/4,G1
- Tube Fitting and Speed Controlle
- PU/PE/Nylon/Air Hose
- Accessories

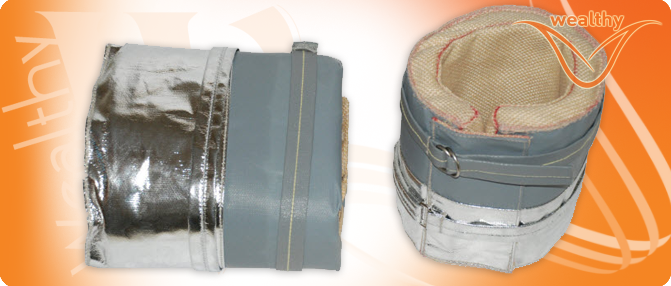

Insulation Jacket (Saving Energy Product)
- Energy saving insulation for air conditioned operation room for injection machine. and blow molding machine
- Tailor made size according to existing dimensions
- Maximum resistance temperature 900 C
Wealthy Brilliance Industrial Company is a supply engineering product trading Business Company specialized in the supply of parts and consumables. In these fields we are cooperating with leading suppliers from Europe, USA and Asia. Our goal is to offer high quality product, good services at reasonable prices. We are professional business and our products are highest available quality standards.
Our expertise is to supply all kinds of heaters and thermocouple for all industries especially for plastic, food, chemical, oil and gas. With our existing stocks facilities, we are able to serve our customers with good delivery time and reasonable prices, of course at high quality products.
Our philosophy is to offer you more than 100 % satisfaction. We want to be Work together with you
- Flat and Curved shape. - 245 x 60 mm, 122 x 60 mm, 122 x 122 mm. - Surface temperature to 750 C. - Available with built-in type K thermocouple. - Accessories more
Standard power density for Brass is 4.5 w/cm2 and for stainless is 7.0 w/cm.
Standard Brass tubular sheath (Alsoavailable in stainless steel). Any Voltage. Perfect roundness. Extremely small connecting cap. more
