Pneumatic Supply

Solenoid Valve/Air Control Valve

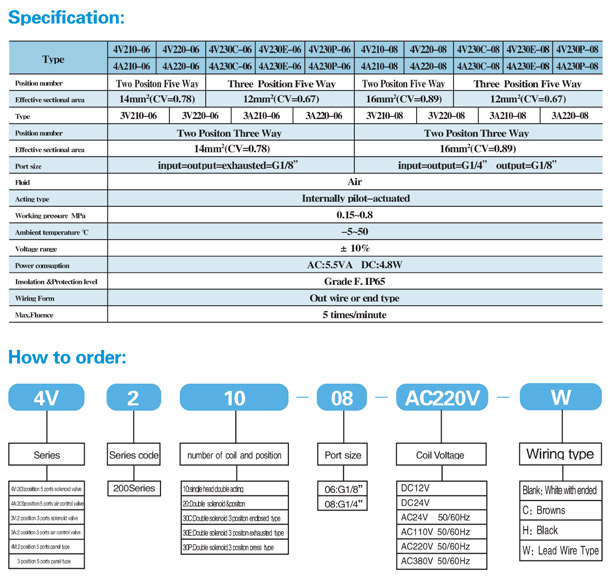

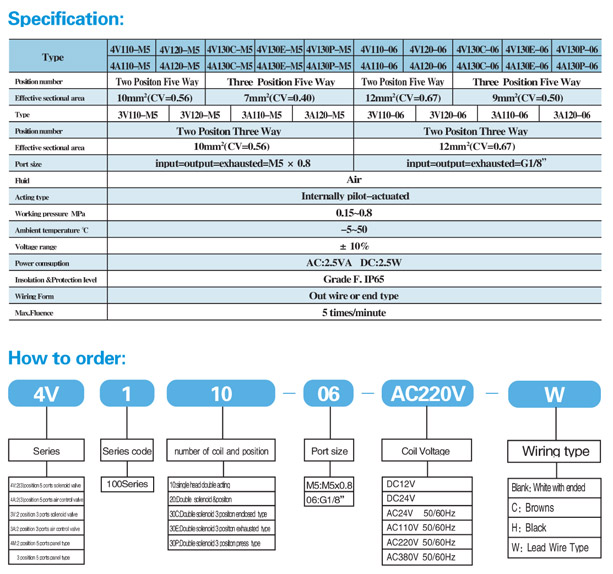

Characteristics:

• Service life:10million cycle times
• The bodies are mirror finished and hardending treated;
• Equipped with imported oil seals with smaller friction and longer service life
• With imported coils,low power consumpti0n,speedy response
• Capable of long service time without being damaged

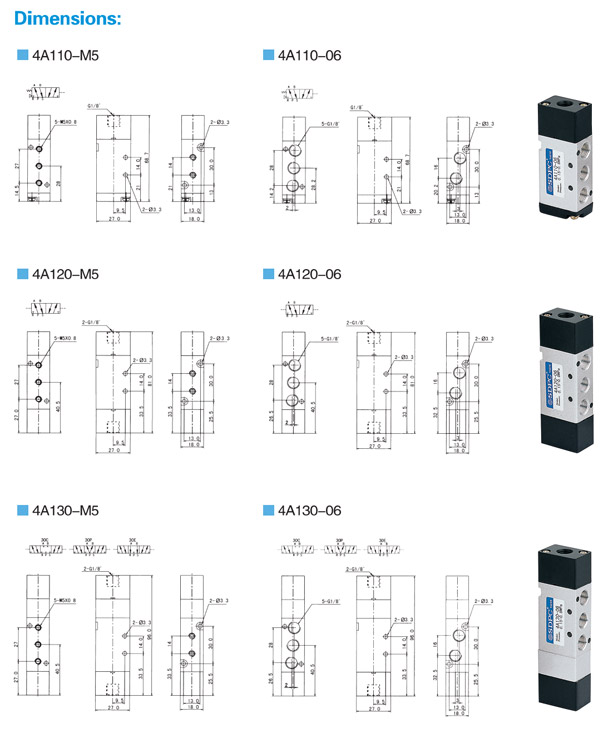

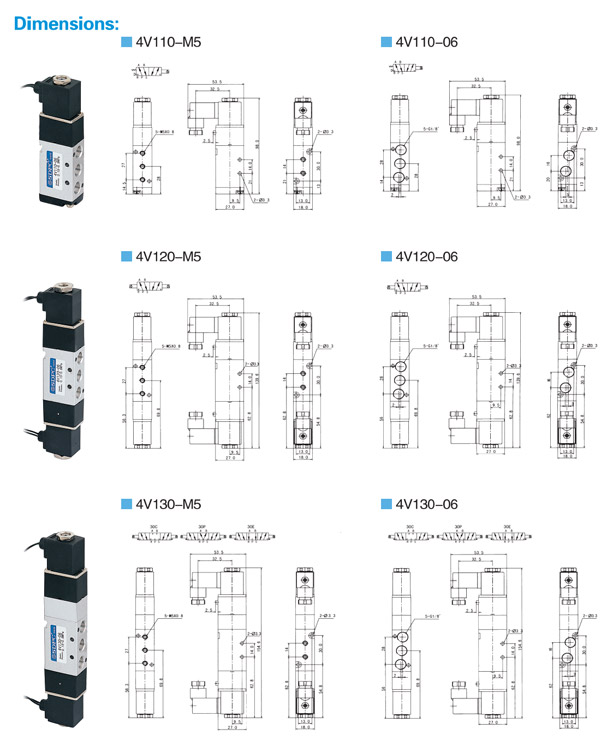

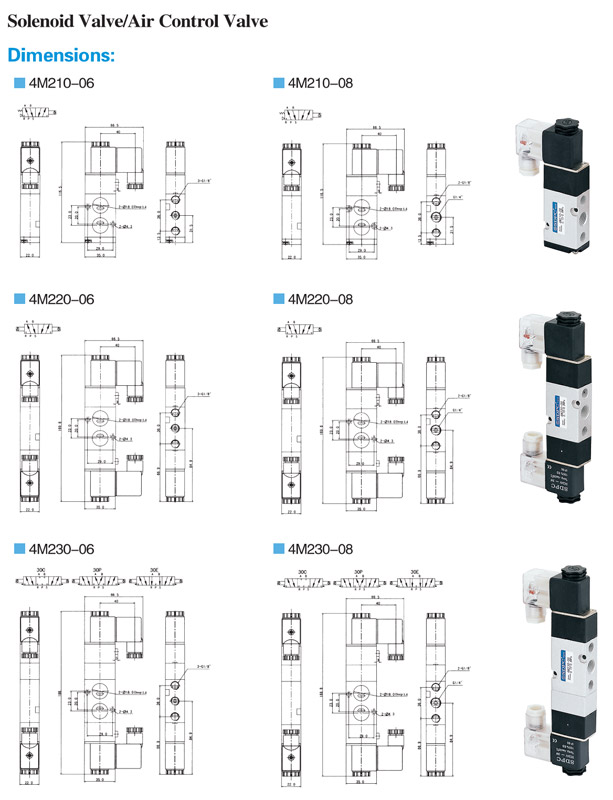

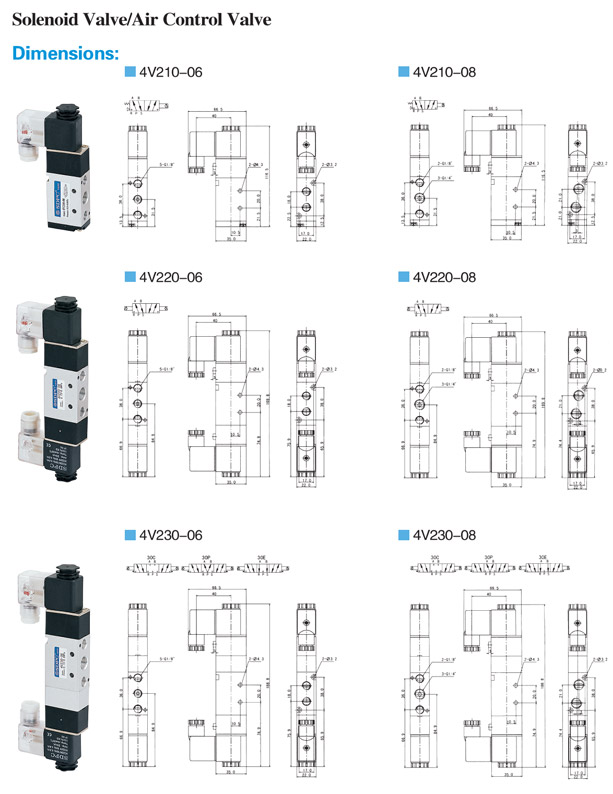

Solenoid Valve/Air Control Valve

Characteristics:

1 2 3 4 5 6
