Finned Tubular Heaters |
|
Finned construction is ideal for transferring heat to air or other gases. Finned tubular heaters are
manufacturted in a very wide range of dimensions and power ratings. They can be shaped into any
pattern, depending on the application. Complete air heating batteries, that incorporate finned tubular
heaters, are designed and built to meet the requirements of any civil or industriaI-process air conditioning 2 W/cm2 speclfic-power finned tubular heaters are ideal for heating low thermal-exchange gases, by simple convection, to 450°C. Typical in static driers, ovens, incubators, room heating. 3 W/cm2 specific-power finned tubular heaters are ideal for heating low-thermal-exchange gases, by simple convection, to 250°C.Typical in ventilated driers, low-power batteries, room heating. 4 W/cm2 specific-power finned tubular heaters are ideal for heating gases in forced-ventilation ducts, in thermofans, industrial batteries, high thermal-exchange installations. 7 W/cm2 specific-power finned tubular heaters are ideal for heating gases in forced-ventilation ducts. |

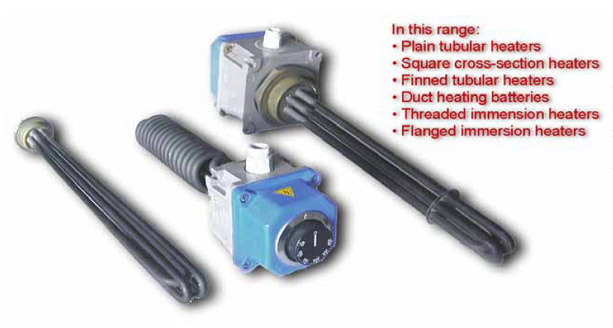

Threaded lmmehsiori Heaters |
|
|
Efficient, compact heating units designed to provide bulk heat flow system processing of fluids or for liquid accumulators. Normal and certitied hazardous area constructions Very widely used to heat water, oil, gases, or for heat transfer. Standard models have AISI 321 tubes and brass heads. Stainless steel heads are also available. Standard contact box is IP4O in aluminium. IP 65 contact boxes also available, as well as IP55 with built-in probe and thermostat. On request, contact heads for hazardous areas are available. |

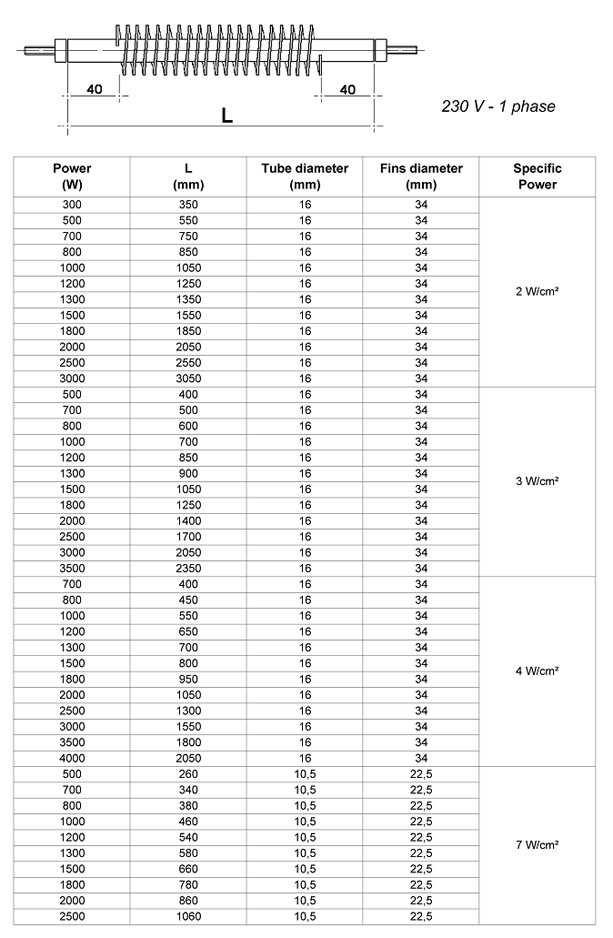

Straight Finned Tubular Heaters |
|

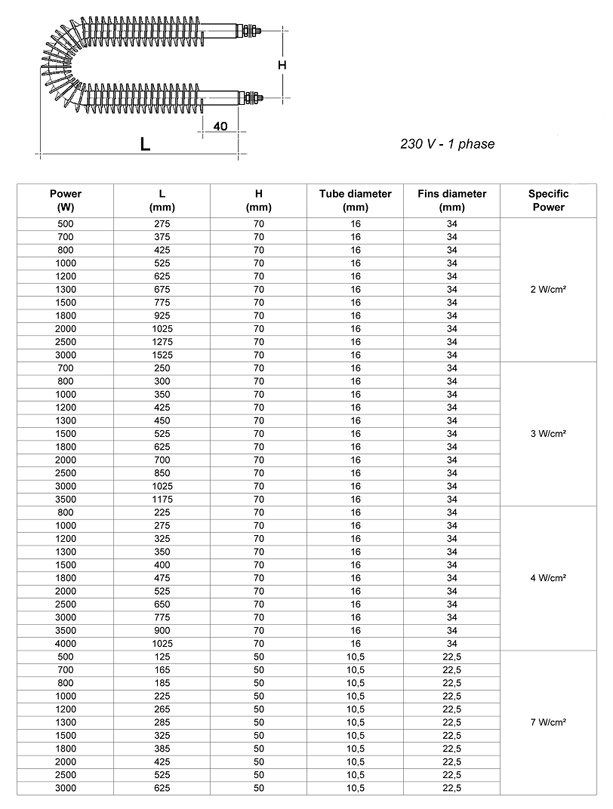

U-shuped Finned Tubulur Heuters |
|

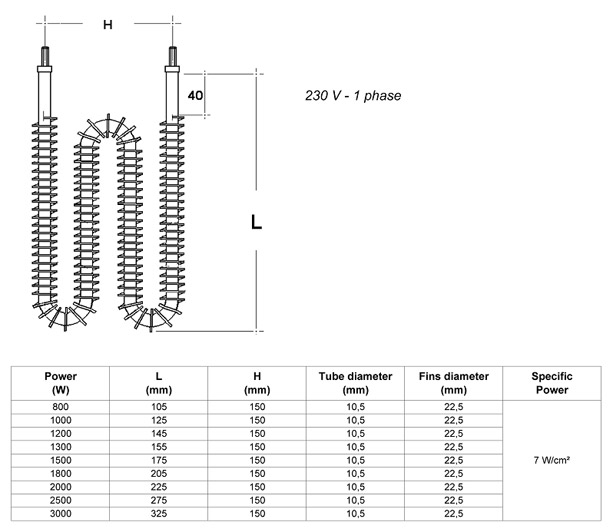

W-shuped Finned Tubulur Heufers |
|

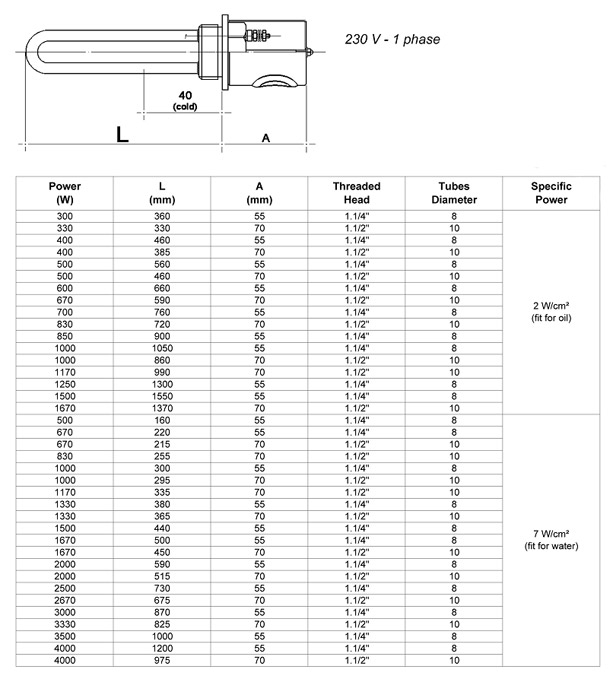

Threaded Immersion Heaters - 1 Element, 1 Bend |
|

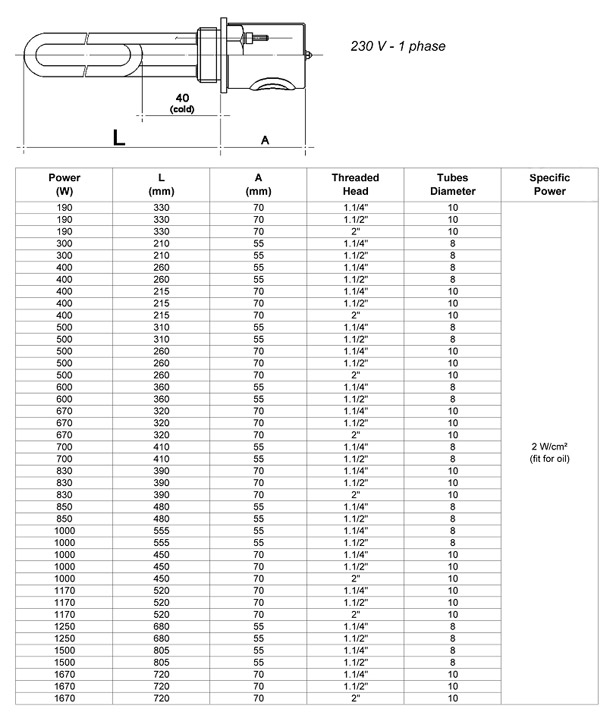

Threaded Immersion Heaters - 1 Element, 3 Bend - Oil |
|

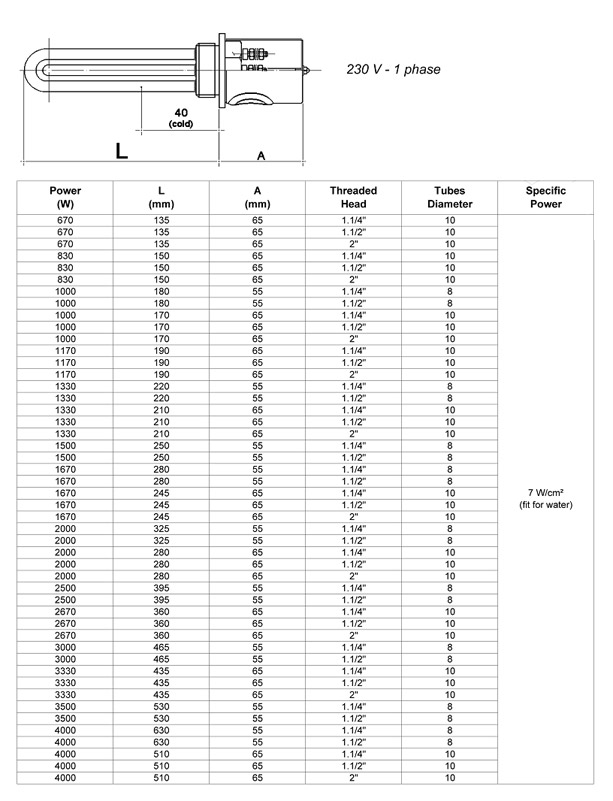

Threaded Immersion Heaters - 1 Element, 3 Bends - Water |
|
Threaded Immersion Heaters - 3 Elements, 1 Bend |
|

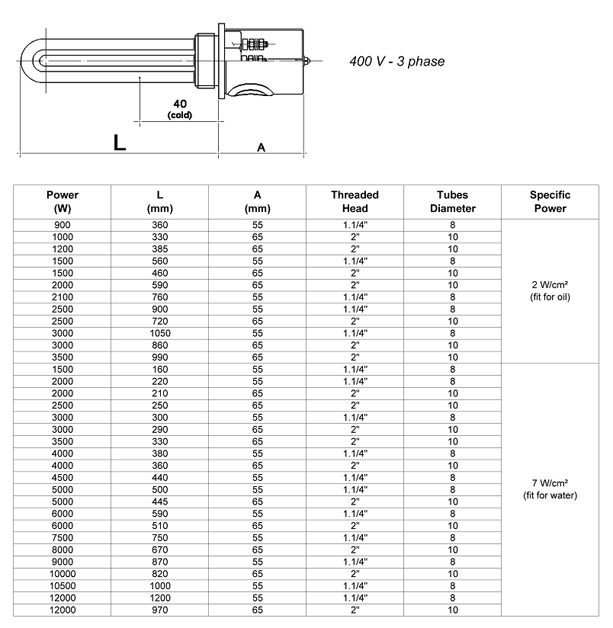

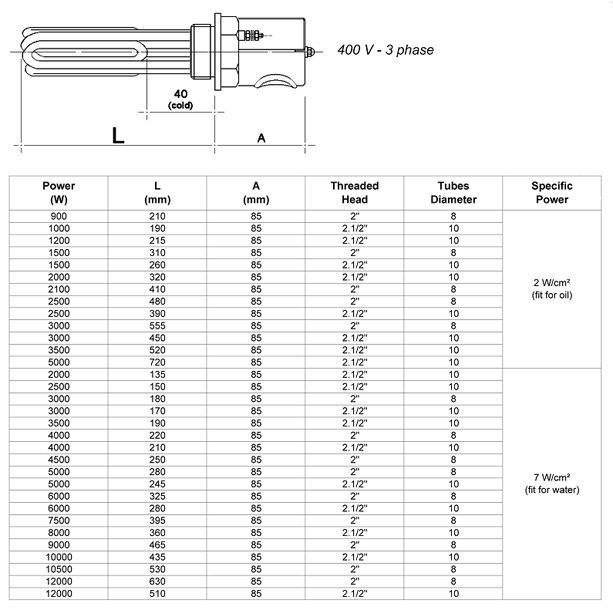

Threaded Immersion Heaters - 3 Elements, 3 Bends |
|

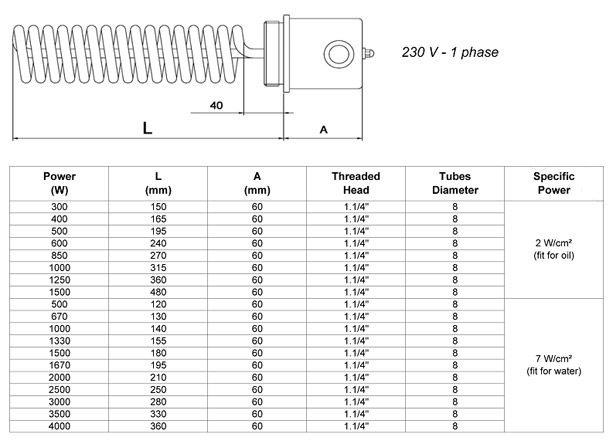

Threaded Immersion Heaters - Screw-shaped Element |
|
|
